鏈輪型號

齒數(shù)

齒頂圓直徑

墊條定位

孔徑

參考重量

PDF圖紙

DXF圖紙

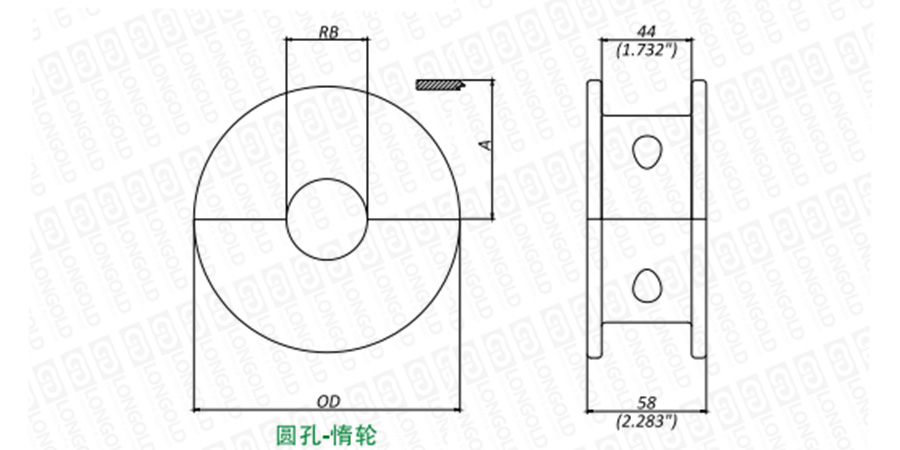

圓孔RB

OD

A

惰輪

T

mm

inch

mm

inch

mm

inch

kg

lbs

CMAS042501725

17.00

106.50

4.193

53.25

2.096

25.00

-

0.34

0.76

請咨詢

請咨詢

CMAS042501730

30.00

0.33

0.73

CMAS042501735

35.00

0.31

0.69

CMAS042501740

40.00

0.29

0.65

CMAS0425017254

-

1

0.34

0.76

CMAS0425017317

1 1/4

0.32

0.71

CMAS0425017349

1 3/8

0.32

0.71

CMAS0425017365

1 7/16

0.31

0.69

CMAS0425017381

1 1/2

0.30

0.66

CMAS042501925

19.00

118.000

4.65

59.000

2.323

25.00

-

0.45

1.00

CMAS042501930

30.00

0.44

0.97

CMAS042501935

35.00

0.42

0.93

CMAS042501940

40.00

0.40

0.89

CMAS0425019254

-

1

0.45

1.00

CMAS0425019317

1 1/4

0.42

0.92

CMAS0425019349

1 3/8

0.42

0.92

CMAS0425019365

1 7/16

0.40

0.89

CMAS0425019381

1 1/2

0.38

0.84

CMAS042502125

21.00

129.80

5.110

64.90

2.555

25.00

-

0.58

1.27

CMAS042502130

30.00

0.56

1.24

CMAS042502135

35.00

0.54

1.20

CMAS042502140

40.00

0.52

1.15

CMAS0425021254

-

1

0.58

1.27

CMAS0425021317

1 1/4

0.56

1.24

CMAS0425021365

1 7/16

0.54

1.20

CMAS0425021381

1 1/2

0.53

1.17

CMAS042502325

23.00

142.300

5.60

71.150

2.801

25.00

-

0.72

1.58

CMAS042502330

30.00

0.70

1.55

CMAS042502335

35.00

0.69

1.51

CMAS042502340

40.00

0.67

1.47

CMAS0425023254

-

1

0.72

1.58

CMAS0425023317

1 1/4

0.70

1.55

CMAS0425023365

1 7/16

0.69

1.51

CMAS0425023381

1 1/2

0.67

1.49

CMAS042502525

25.00

154.70

6.091

77.35

3.045

25.00

-

0.87

1.92

CMAS042502530

30.00

0.85

1.88

CMAS042502535

35.00

0.84

1.85

CMAS042502540

40.00

0.82

1.80

CMAS0425025254

-

1

0.87

1.91

CMAS0425025317

1 1/4

0.85

1.88

CMAS0425025365

1 7/16

0.84

1.85

CMAS0425025381

1 1/2

0.83

1.82
