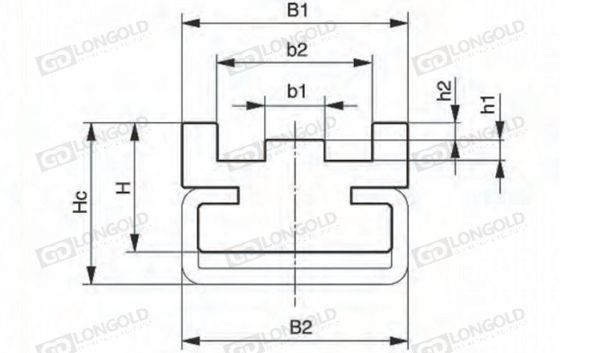

導(dǎo)軌型號

配用鏈條型號

C-型槽鋼

B1

B2

H

Hc

b1

b2

h1

h2

PDF 圖紙

DXF圖紙

mm

mm

mm

mm

mm

mm

mm

mm

LD06B-1-S-CTS3

06B-1

C3

20

20

14

17

3.8

13.0

1.5

1.1

請咨詢

請咨詢

LD083-1-S-CTS3

083-1

C3

20

20

14

17

3.0

12.4

1.6

1.4

LD085-1-S-CTS3

085-1

C3

22

20

14

17

4.5

15.1

2.2

1.6

LD08B-1-S-CTS3

08B-1

C3

25

20

16

20

5.7

16.3

2.2

1.6

LD10B-1-S-CTS3

10B-1

C3

25

20

16

20

4.1

16.1

2.6

2.1

LD10B-1-S-CTS5

10B-1

C5

28

28

16

20

7.4

19.2

2.6

2.1

LD12B-1-S-CTS5

12B-1

C5

30

28

18

22

9.2

21.8

2.4

2.8

LD16B-1-S-CTS9

16B-1

C9

42

38

25

30

15.0

35.0

3.5

3.3

LD20B-1-S-CTS9

20B-1

C9

50

38

30

35

16.8

40.0

4.2

4.0

LD35-1-S-CTS3

35-1

C3

20

20

14

17

3.7

11.0

2.3

0.7

LD40-1-S-CTS3

40-1

C3

25

20

14

18

6.3

15.5

2.4

1.8

LD50-1-S-CTS5

50-1

C5

30

28

18

22

7.5

19.5

2.8

2.3

LD60-1-S-CTS5

60-1

C5

35

28

20

25

10.1

24.4

3.5

2.7

LD80-1-S-CTS9

80-1

C9

40

38

25

32

12.6

31.3

4.7

3.6

LD100-1-S-CTS9

100-1

C9

50

38

30

37

15.1

38.4

6.4

4.3

LD120-1-S-CTS12

120-1

C12

60

60

35

40

20.2

48.6

8.0

5.0

LD140-1-S-CTS12

140-1

C12

70

60

35

43

20.2

52.5

9.7

5.7

LD160-1-S-CTS12

160-1

C12

80

60

40

47

25.2

62.5

10.3

6.4
